Walbro (Ti-Automotive) 255 LPh In tank fuel pump GCA758
1/2

Walbro (Ti-Automotive) 255 LPh In tank fuel pump GCA758

$129.99

Reliable shipping

Flexible returns

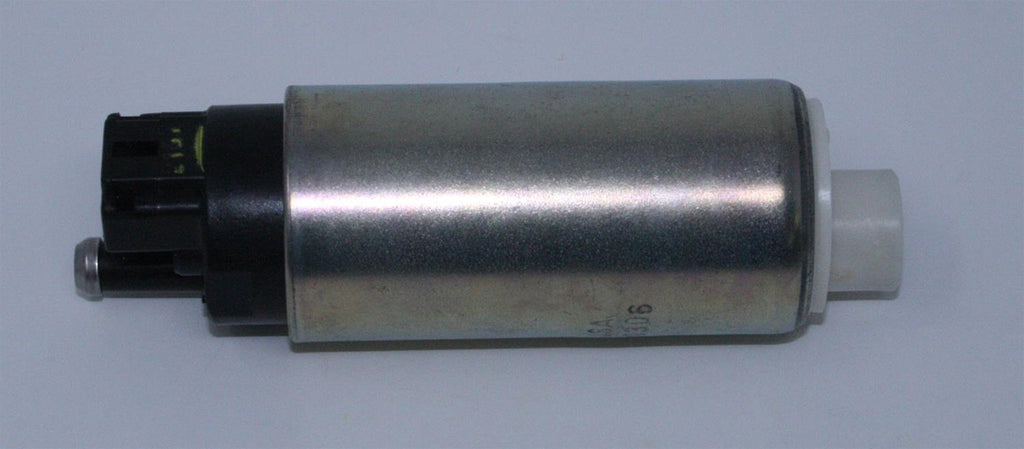

Walbro (Ti Automotive) 255 LPH In-Tank Fuel Pump — GCA-758

A trusted in-tank EFI pump for LS swaps and EFI conversions, delivering a reliable 255 LPH for smooth fuel delivery on builds up to ~550 HP (gasoline). Popular in GM/Chevy swaps and retrofit tanks; verify sending-unit fitment before install.

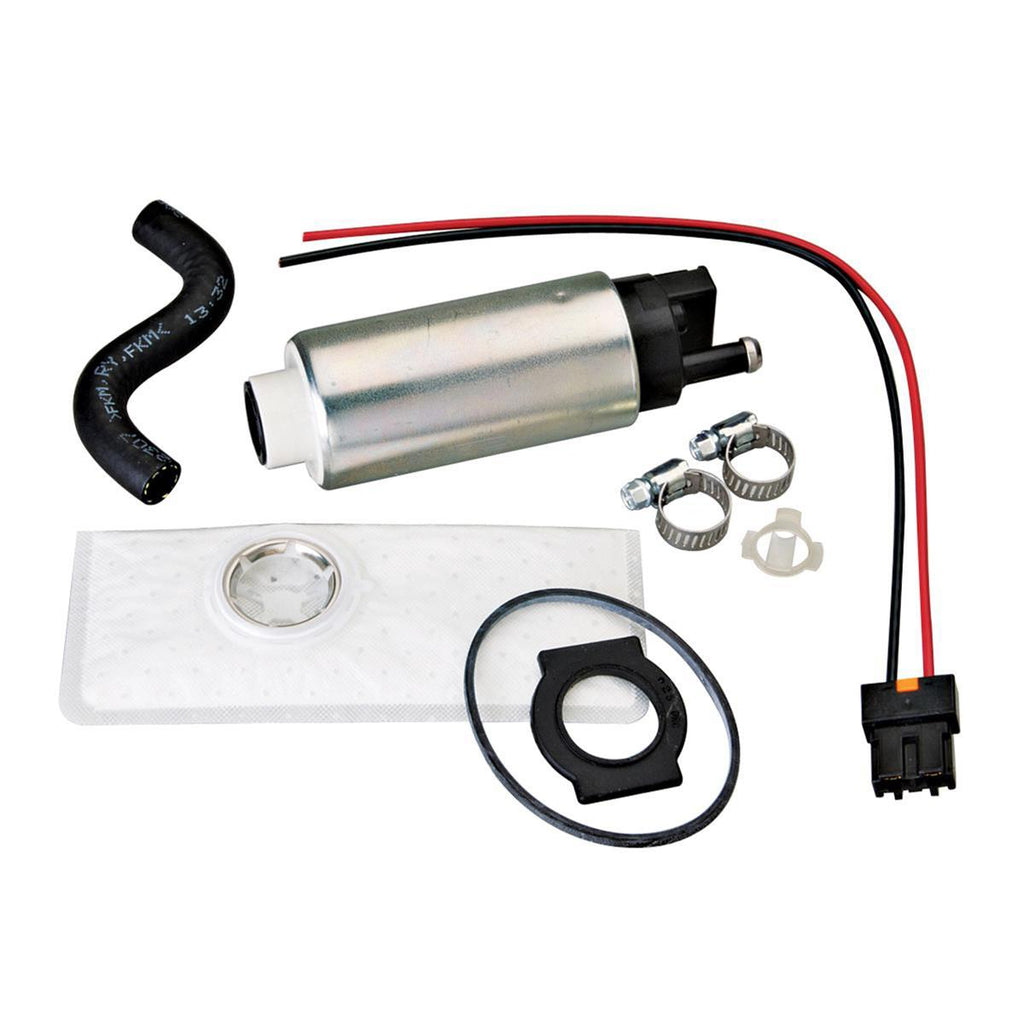

What’s included

  • Walbro / Ti Automotive GCA-758 255 LPH in-tank fuel pump (12 VDC)

Note: Verify physical fit, electrical connector, and outlet hose size on your sending unit. Strainer/installation hardware may be required based on application (sold separately).

  • 255 LPH output: supports many NA LS swaps and street EFI builds up to ~550 HP (gasoline).
  • In-tank OEM style: quiet operation and consistent pressure for modern EFI.
  • GM swap friendly: commonly used in factory tanks and retrofit modules; pair with FG05M/FG05N.
  • AN-system ready: plumbs cleanly with PTFE hose and AN fittings on the pressure side.

Performance & specs

Flow rate 255 LPH (in-tank)
Recommended power Up to ~550 HP (gasoline, system-dependent)
Voltage 12 VDC
Pump type In-tank EFI pump
Compatibility LS swaps; Holley Sniper, ACES EFI, FiTech, and OEM-style EFI
Warranty 90-day manufacturer warranty (Walbro / Ti Automotive)

Ideal use cases

  • Stock to mild LS engine swaps targeting OEM-like drivability
  • EFI conversions on classics using factory or retrofit tanks
  • Daily-driven builds where quiet, reliable in-tank operation matters
Install notes:
  1. Confirm sending-unit compatibility (physical dimensions, connector, outlet size). Popular pairings include FG05M and FG05N.
  2. Use a coarse pre-filter / strainer in-tank and a 10 micron or finer (≤10 μm) EFI filter on the pressure side.
  3. Plumb the pressure line with PTFE AN hose & ends; keep AN size consistent with your regulator/rails.
  4. After assembly, pressure-test and verify base fuel pressure at the rail.

PTFE hose tip: wrap the cut area tightly with tape before cutting with shears to control braid fray; remove tape after fitting the olive/ferrule. See our install guide.

Recommended add-ons

Fast Shipping Fast Shipping • Free $99+
Expert Support Expert Support
Manufacturer’s Warranty Manufacturer’s Warranty (90-day)

Quick FAQs

Will this work with my sending unit?
Often yes—measure dimensions and check connector/orientation. It pairs well with FG05M / FG05N squarebody units.
How fine should my EFI filter be?
Use a 10 micron or finer (≤10 μm) filter on the pressure side, plus a coarse pre-filter/strainer in-tank.
Is 255 LPH enough for my build?
For many NA LS swaps up to ~550 HP on gasoline, yes. For E85 or boost, calculate total fuel demand and consider higher-flow solutions.
Warranty
Covered by a 90-day manufacturer warranty (Walbro / Ti Automotive). We’ll help facilitate any warranty claims—contact support with your order number and photos.
Shipping
Fast shipping. Free shipping on orders $99+. Rates and options shown at checkout.
Returns
Hassle-free returns on new, unused items in original packaging per our Returns Policy.
Quality
Chosen to integrate cleanly with PTFE AN hose systems for reliable EFI performance.
