Vapor Trapper™ Universal Charcoal Canister – Fuel Tank Vent Line Vapor Filter

Eliminate raw gas smell from vented fuel tanks. Vapor Trapper™ is a billet-aluminum, rechargeable charcoal canister that installs in-line on your tank vent, absorbing fuel vapors while allowing the tank to breathe normally. Built in the USA and backed by a lifetime warranty.

• Stops garage & cabin fuel odor by trapping hydrocarbon vapors before they escape.
• Universal, easy install in the vent line using two 2-1/2" clamps; mount above the tank to avoid liquid fuel carryover.
• Serviceable / rechargeable media – replace charcoal when saturated over time.

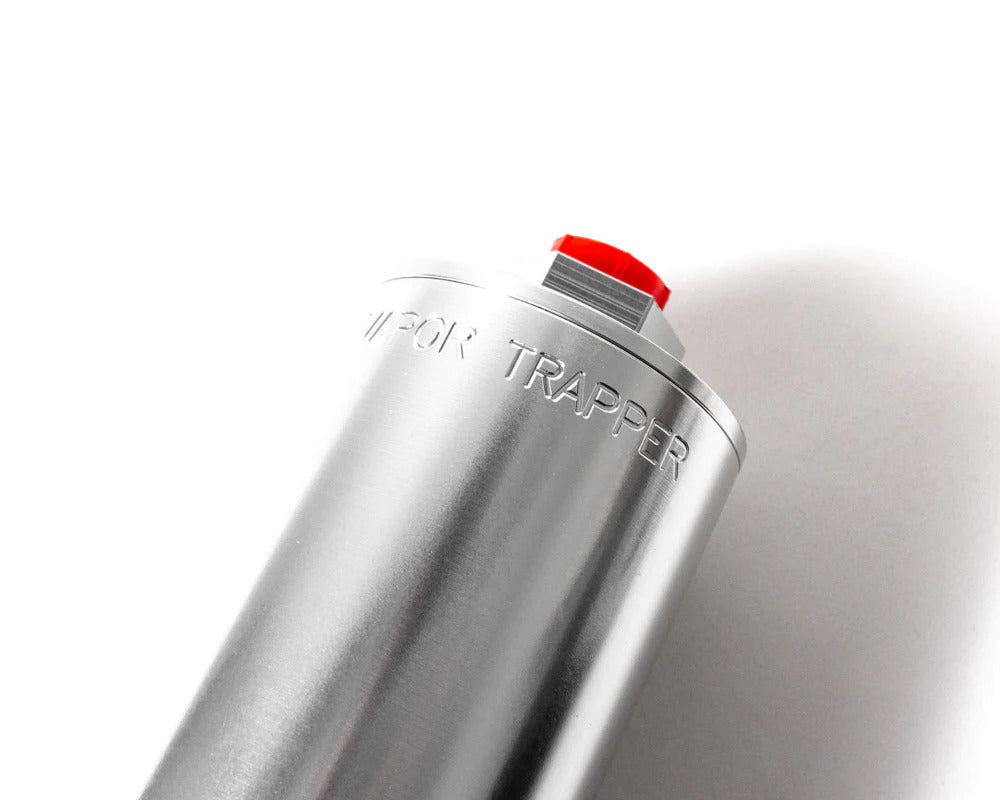

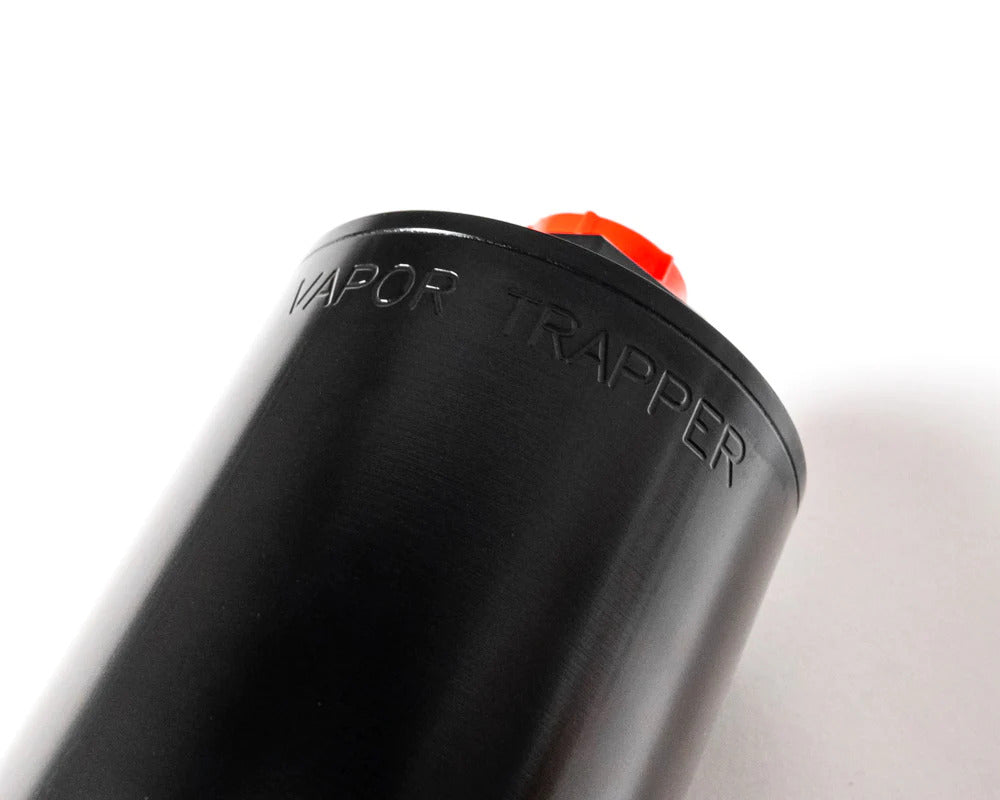

• Billet 6061 construction with black or silver anodize.
• No vent restriction for normal tank breathing when installed correctly.
• Lifetime warranty from the manufacturer.

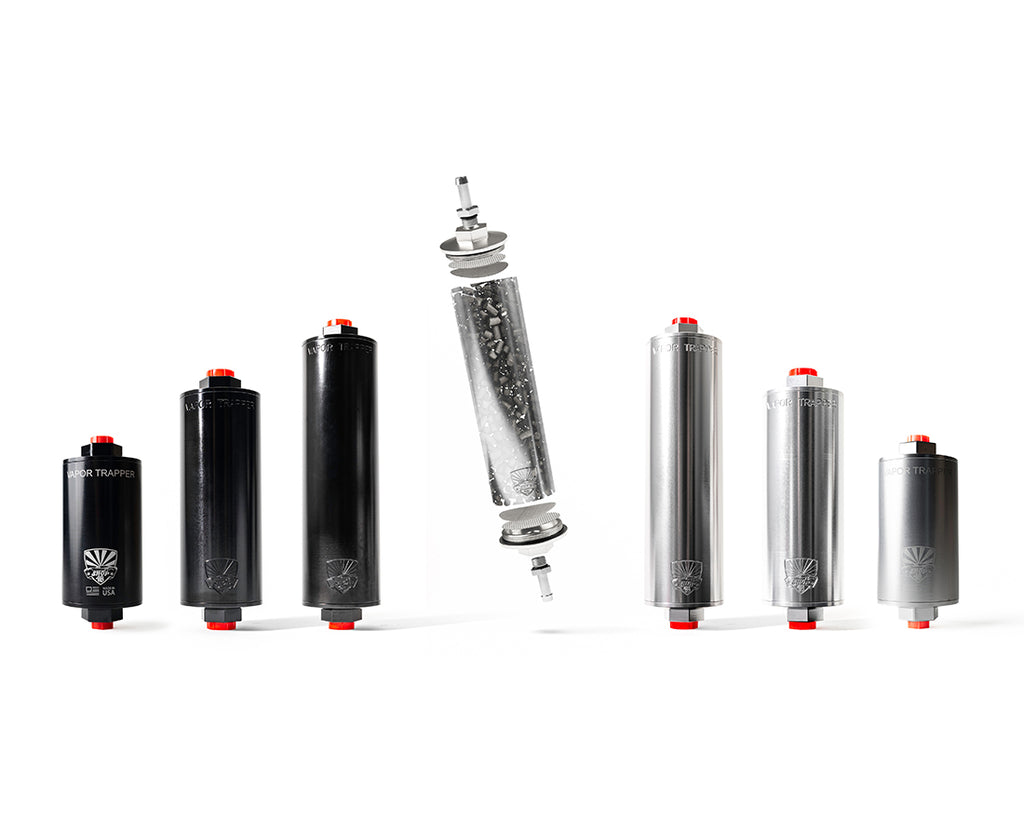

Which size should I choose?

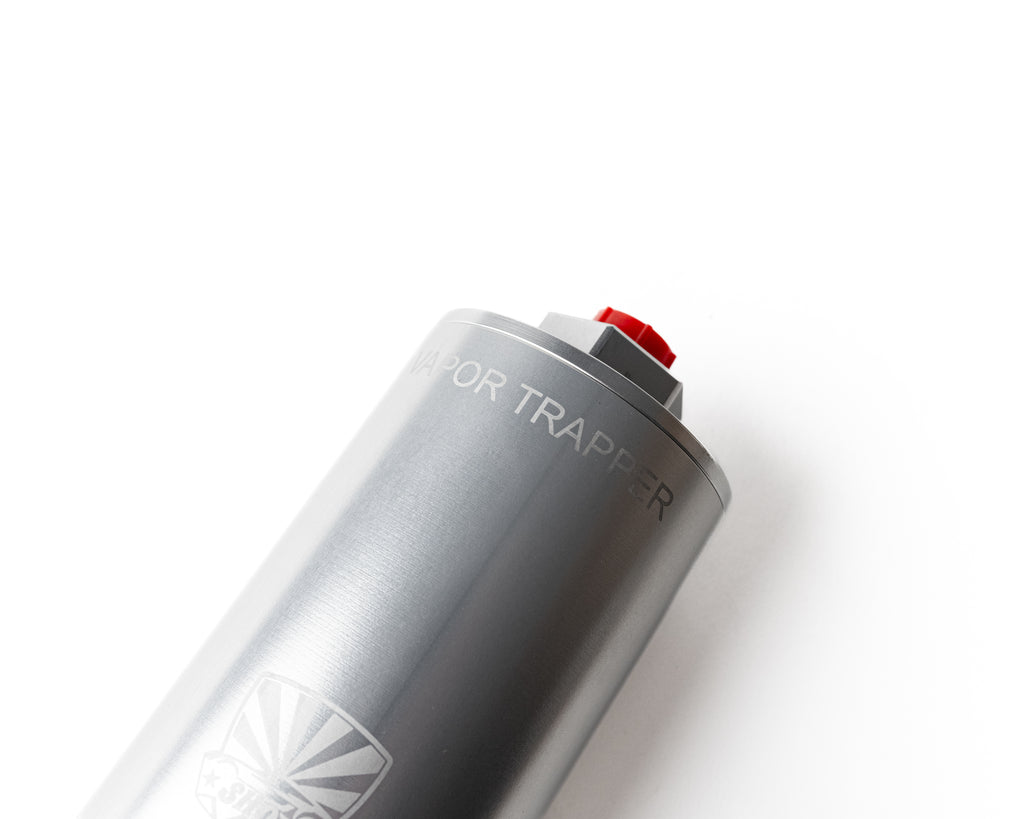

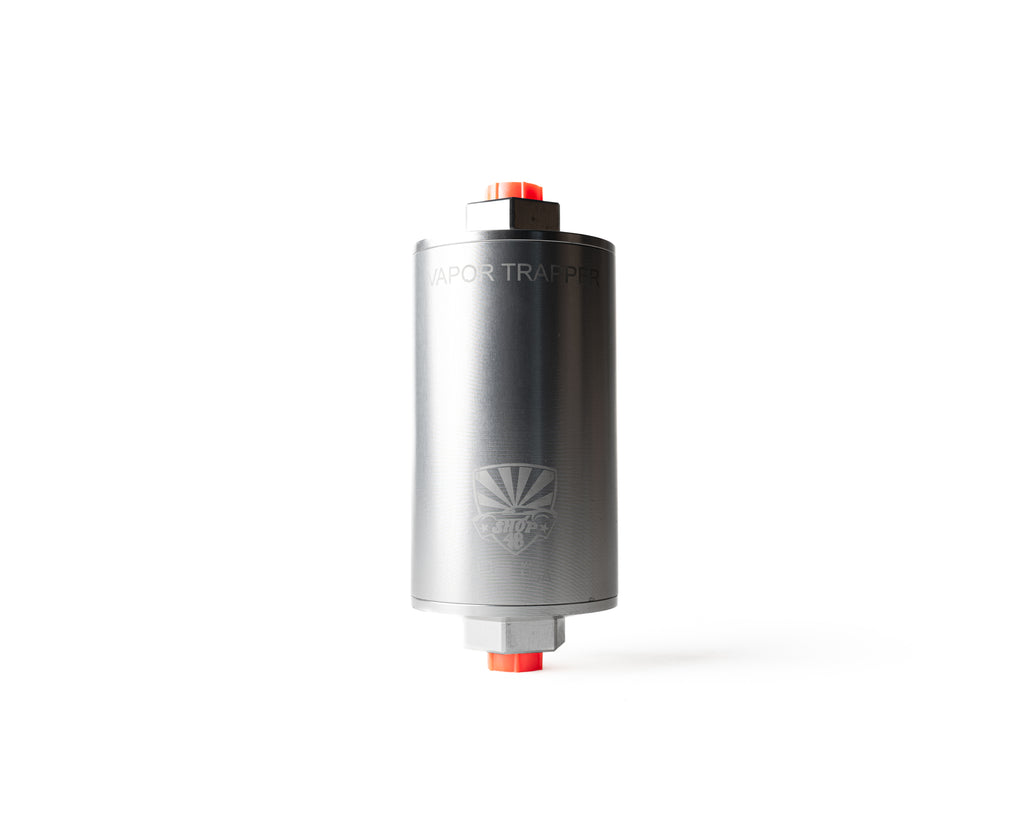

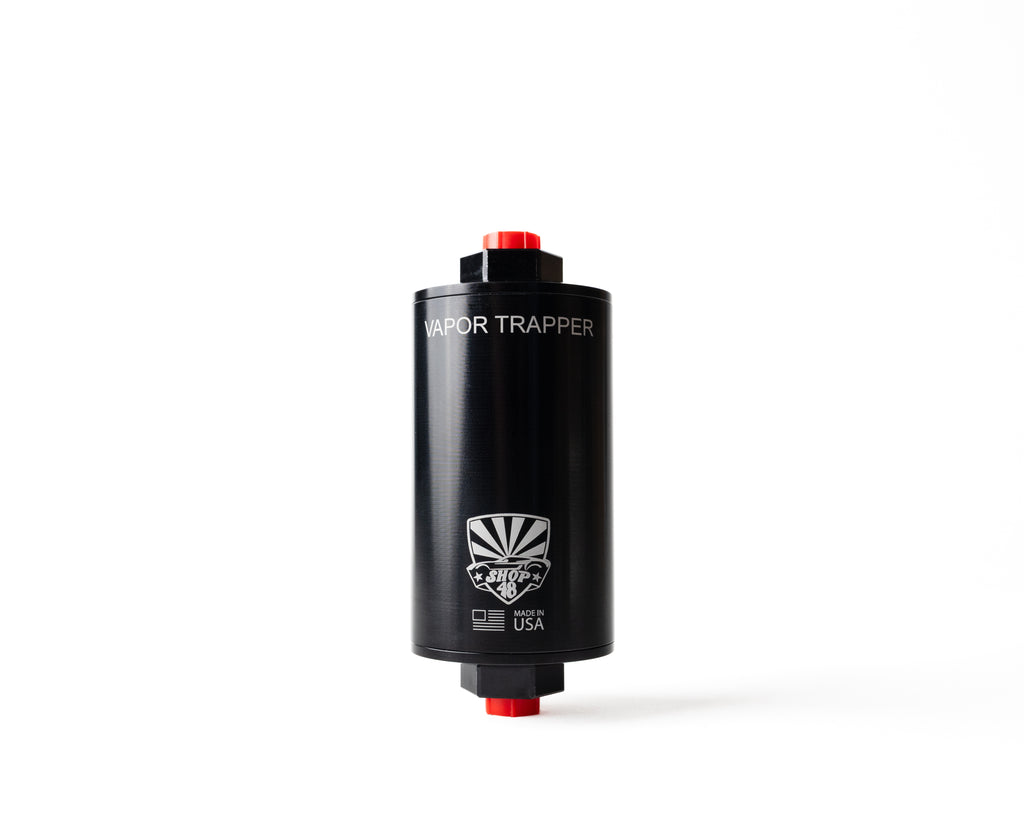

4" canister: compact spaces, powersports, tight bays.

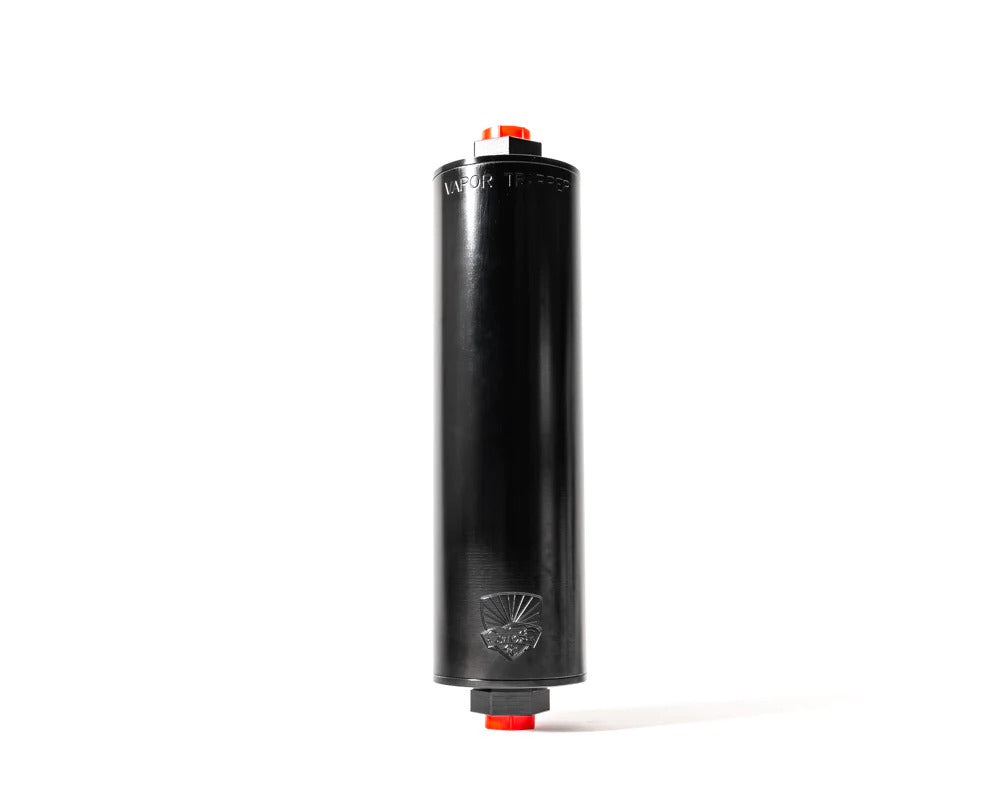

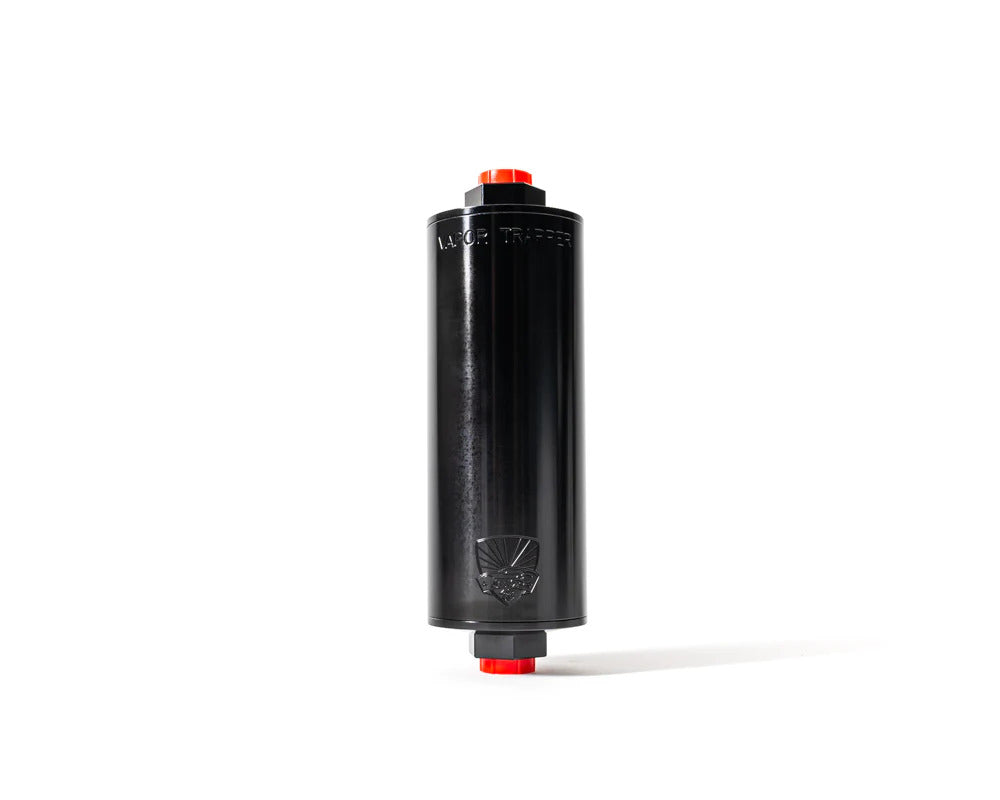

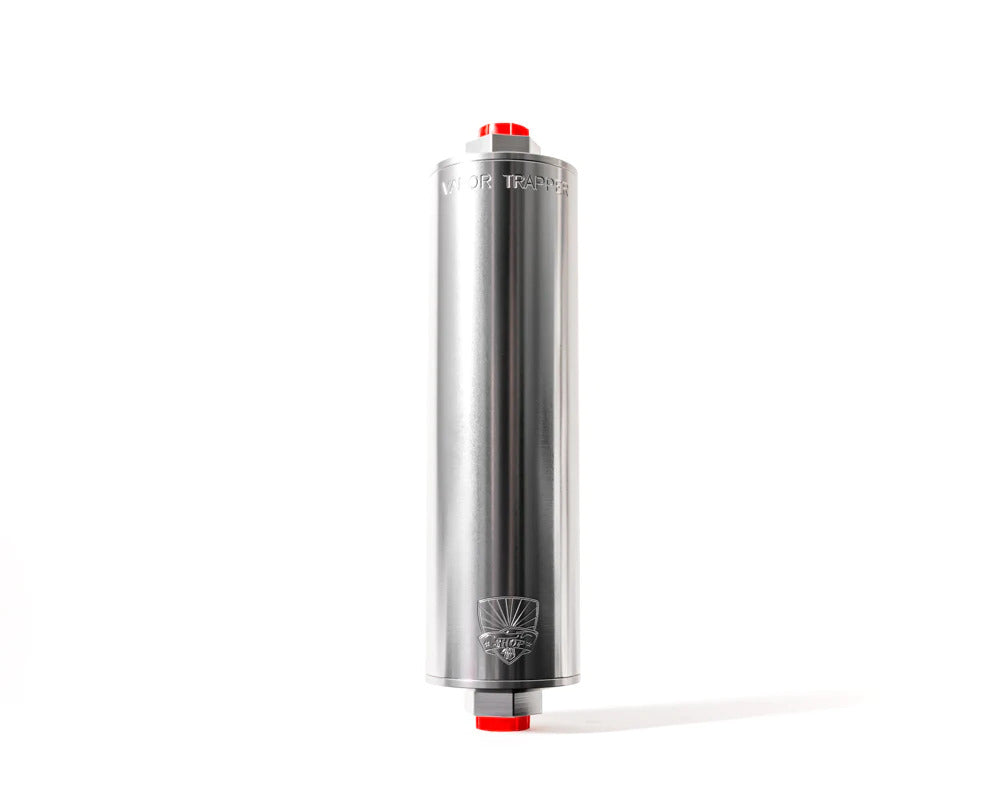

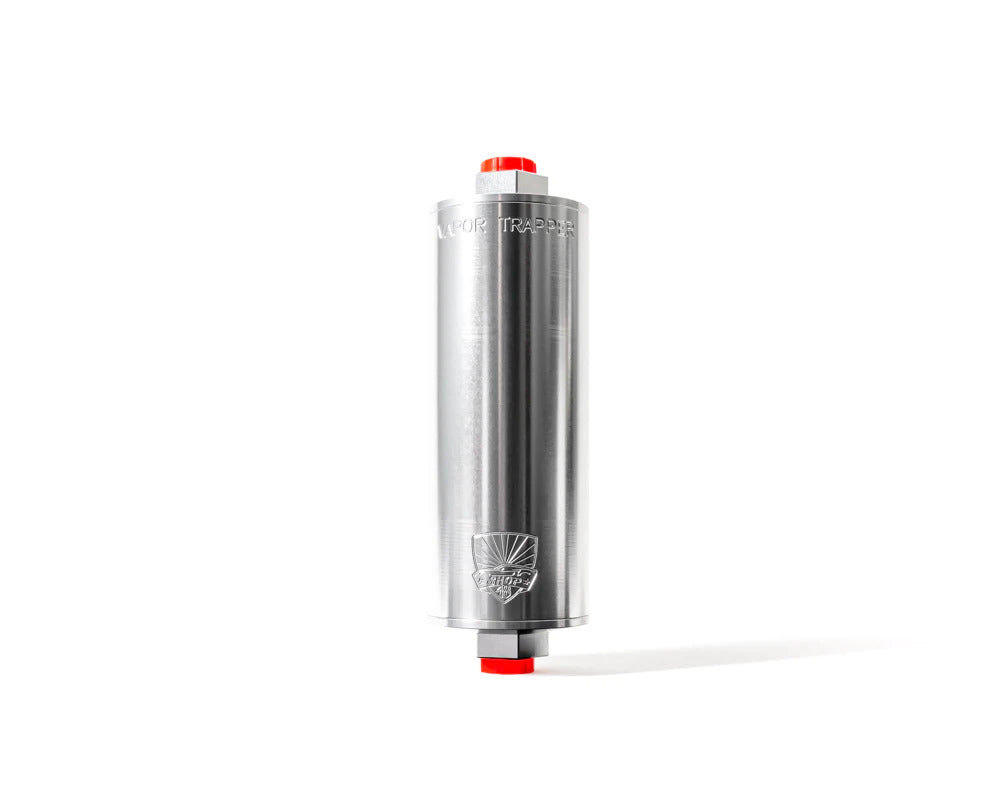

6" or 8" canister: most cars, trucks, boats — choose 8" when space allows for maximum charcoal capacity; 6" when space is limited.
High Performance (with -8AN end-caps): for higher-output builds or when you already run larger vent lines.

*Please note this product has an additional shipping charge at checkout.

Porting: Universal series uses -6 AN O-ring Boss (ORB) ports. Convert directly to AN using -6 ORB → AN adapters—no hose barbs needed.

Plumbing guide (sending unit vents)

Vent ports on many sending units vary by application and are commonly 1/4" or 5/16" hardline tube. Use our Hard Line to AN adapters to convert the vent to AN. For most builds, -6 AN hose and fittings are ideal from the sending unit to the Vapor Trapper™ and to your safe vent location.

Recommended safety add-on: Rollover Valve

Pair the Vapor Trapper™ with our rollover valve to help reduce fuel spillage if the vehicle is inverted. This is a bulkhead-style, through-tank valve: drill the specified hole in a flat spot on the top of the tank, the valve body installs inside the tank, and two PTFE sealing washers sandwich the tank wall. On the outside of the tank you’ll see the male AN fitting ready to connect your vent line.

• Internal check ball drops into place if the car flips, closing the vent path.
• -6 AN male valve pairs with Universal Vapor Trapper (use -6 AN hose).
• -8 AN male valve pairs with High Performance Vapor Trapper (use -8 AN hose).
• Install on the top of the tank, oriented vertically; verify internal clearance from the float/sender and baffling.

What’s in the box

• 1 × Vapor Trapper™ canister (variant selected)

What you’ll need to complete the install

• (2) 2-1/2" mounting clamps (mount the canister above the fuel tank; keep the inlet high).
• -6 ORB → AN adapters at the canister ports: shop AN adapters.
• Hardline-to-AN adapter at the sending unit (commonly 1/4" or 5/16" tube): shop hardline to AN.
• Bulkhead rollover valve (choose -6 for Universal, -8 for High Performance; -10 option available on the product page).
• Vent plumbing using AN hose & reusable AN fittings (most builds use -6; High Performance uses -8): PTFE hose & fittings bundles.
• Tools to assemble PTFE hose cleanly: Install tool bundle.
• Optional: mounting hardware & line clamps: clamps & mounting.

Mounting options & service parts

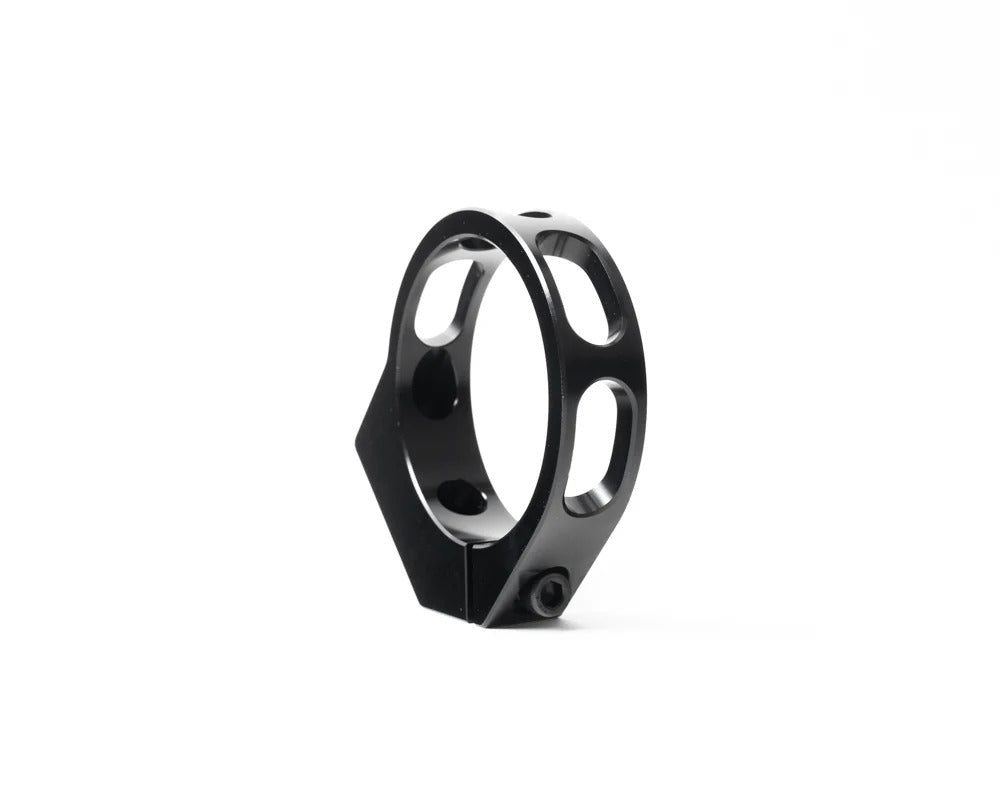

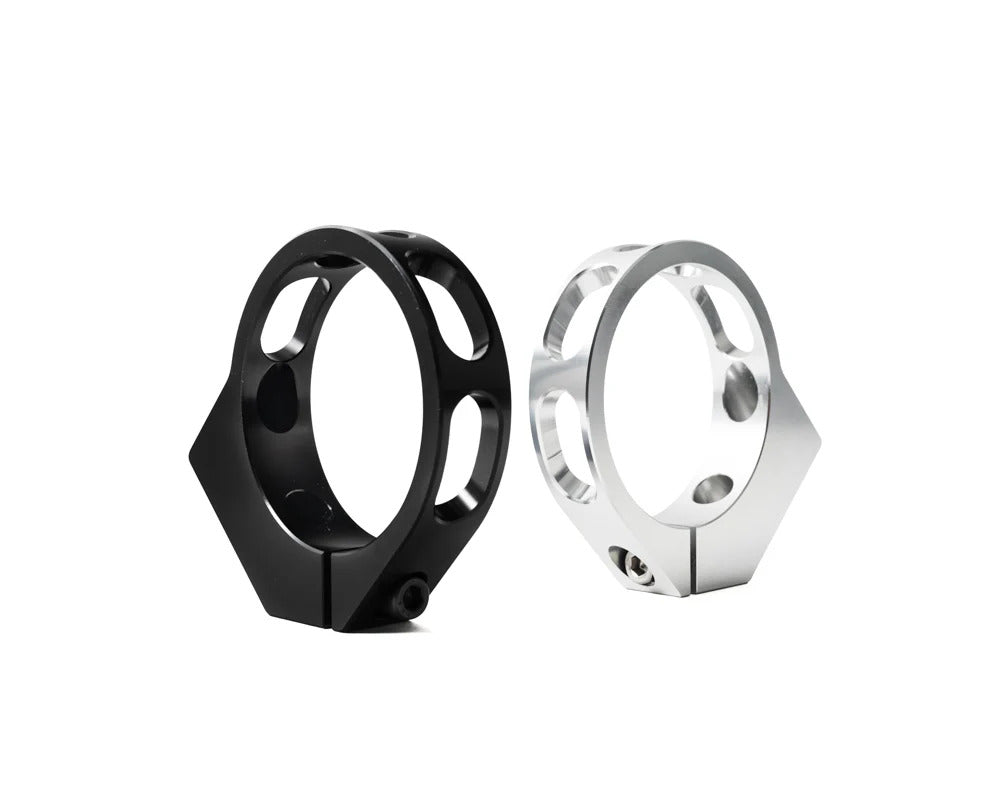

• Billet Clamp 2-1/2" — Black Anodized (Pair) — BC25BLK-2

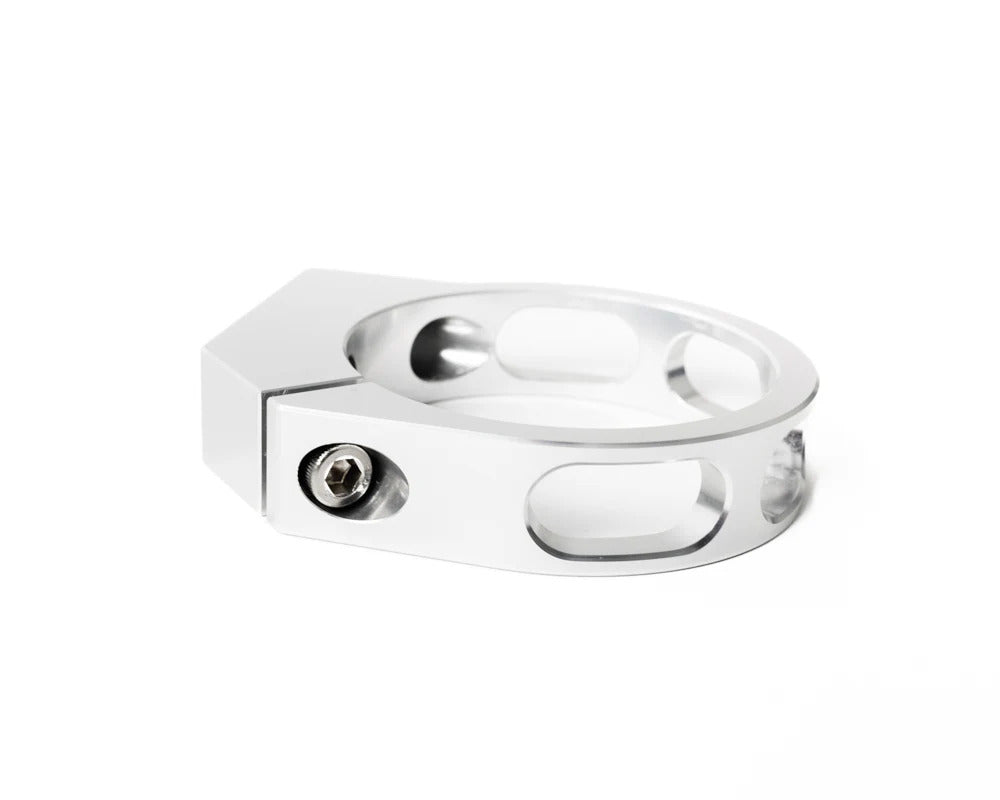

• Billet Clamp 2-1/2" — Silver Anodized (Single) — BC25SIL
• Billet Clamp 2-1/2" — Silver Anodized (Pair) — BC25SIL-2
• 2-1/2" Vibration Dampening “Dell” Clamp — DCBLK
• Charcoal Refill Kit for Vapor Trapper™ — CHARKIT

Intended for vehicles and fuel cells vented to atmosphere (hot rods, classics, boats, off-road). Not a replacement for OEM emissions systems; check local regulations before modifying emissions equipment.
